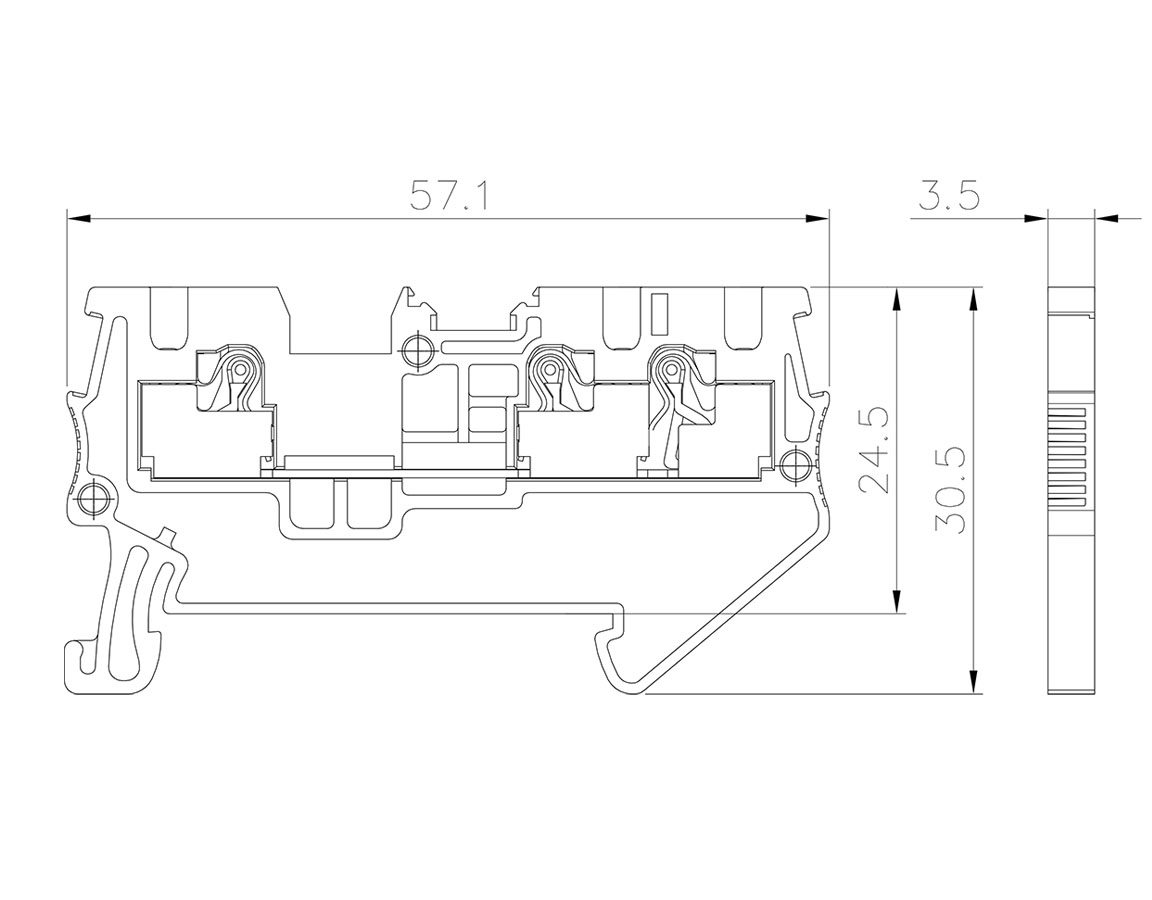

产品型号 |
TP1.5-3-GY | ||
| 宽度 Width |
3.5mm | ||
| 产品层数 Number of levels |
1 | ||
| 接线位数 Number of connections |
3 | ||
| 接线方式 Connection method |
直插弹簧接线 | ||
| 防护等级 Protection Level |
IP20 | ||
| 工作温度 Work temperature |
-40~+105℃ | ||
| 额定电流 Rated Current |
17.5A |
| 额定电压 Rated Voltage |
500V |
| 过压类别 Overvoltage category |
Ⅲ |
| 污染等级 Pollution degree |
3 |
| 额定冲击电压 Rated impulse voltage |
6KV |
| 刚性导线截面积 Conductor cross section solid |
0.2-1.5mm² |
| 柔性导线截面积 Conductor cross section flexible |
0.2-1.5mm² |
| 柔性导线截面积，带绝缘管套 Conductor cross section flexible,with furrule |
0.2-1.0mm² |
| 剥线长度 Stripping length |
8-10mm |
| 使用组别 Use group |
B |
C |
D |
| 额定电流 Rated Current |
15A |
15A | - |
| 额定电压 Rated Voltage |
300V |
300V | |
| 额定接线容量 Rated cross section |
26-14AWG |
| 绝缘材料 Insulation material |
PA66 |
| 绝缘材料组别 Insulation material group |
Ⅰ |
| 阻燃等级，符合UL94 Flame retardant grade, UL94 compliance |
V0 |
| 导电体材料 Contact material |
Copper alloy |
| 导电体表面镀层 Surface characteristics |
Sn,Plated |
| 认证图标 Certificate |
  |
||
| UL证书号 UL file No. |
|||
| VDE证书号 VDE No. |
|||
| TUV证书号 TUV No. |
|||
